JBL509Ultra Home > Car Lift > Two-post Lift
JBL509Ultra | 4.0T Two-post Lift with Electrical release

JBL509 Ultra.jpg

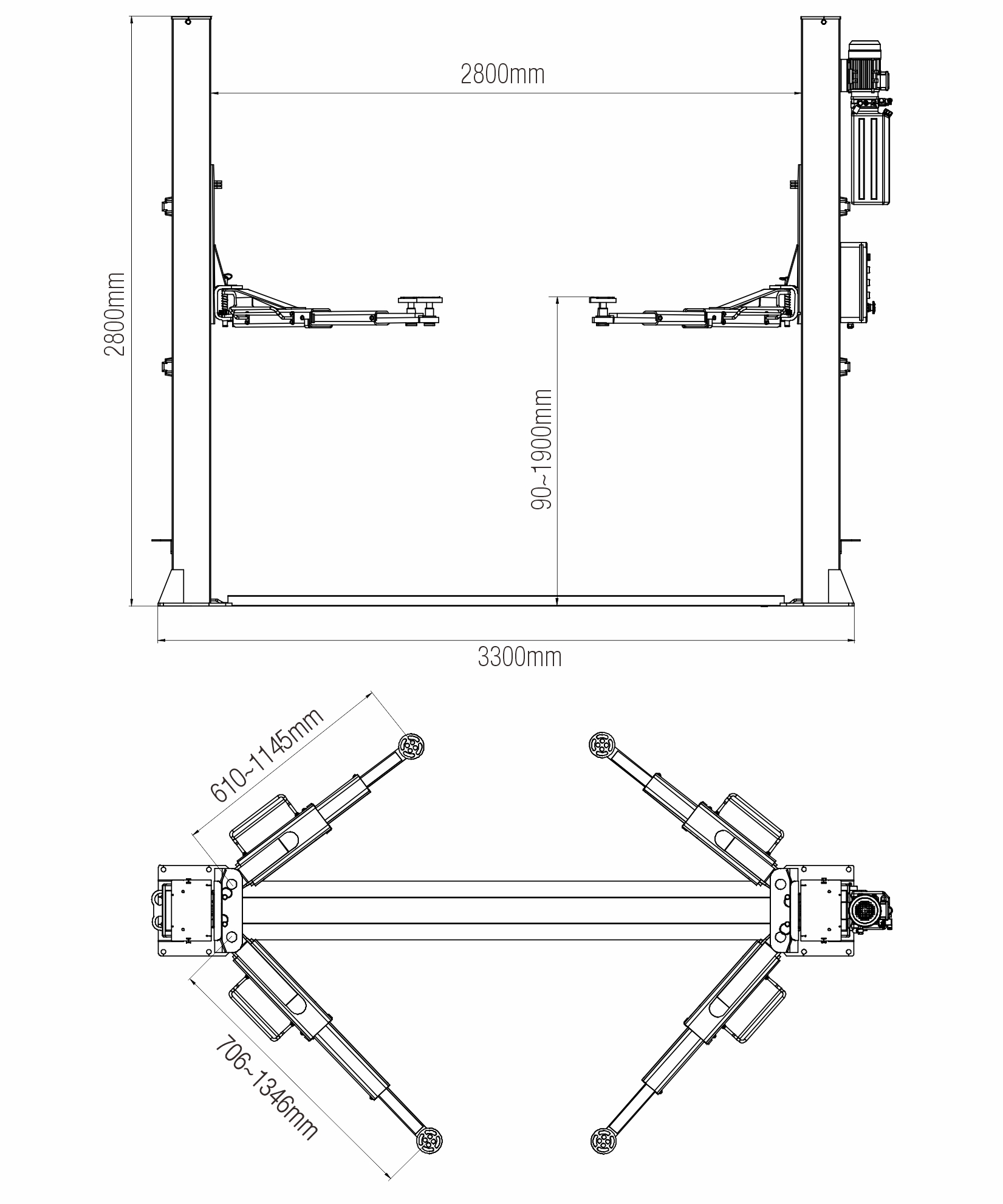

Technical Data Details Dimensions Options
Model NumberJBL509Ultra
Lifting Capacity
4,000kg
Min. Height100mm
Max. Lifting Height1,900mm
Overall Height2,800mm
Overall Width3,302mm
Width between Posts2,800mm
Short Arm Length750~1,150mm
Long Arm Length900~1,400mm
Lifting/Lowing Time55Sec./45Sec.


JBL509 Ultra.jpg
