| Lifting Capacity | 4000KG | Min. Height | 110mm |
| Max.Lifting Height | 1,800mm | Overall Height | 3,650mm |
| Overall Width | 3,420mm | Width between Posts | 2,780mm |
| Short Arm Length | 712~980mm | Long Arm Length | 830~1,150mm |
| Lifting/Lowering Time | 55Sec./45Sec. | Motor Power | 2.2kw |
| Power Supply | 380V/50Hz/3Ph 220V/50Hz/1Ph | ||
|
|
|

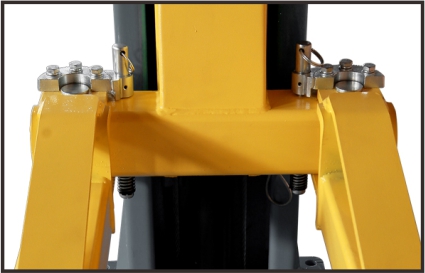

Power pack with UP button and manual lowering valve handle. | Asymmetric 2-stage lifting arms. | Drop-in type lifting pad with 80mm height adaptor. |
|
|
|
Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor. | Safety locks with automatic engagement and dual side manual lock release. | Safety locks on the column every 80mm. |
|
| |
Storage rack for height adaptors on the base. | Padded overhead protection bar automatically stops the lift should a vehicle come in contact with overhead structure. |
